Canvas-1

今天在选择题中碰到了canvas的题目，于是想来补一补相关的知识

Canvas的使用

1
2
3
<body>
    <canvas width="500px" height="500px">您的浏览器版本过低，请升级浏览器或使用Chrome</canvas>
</body>

如何居中？

1
2
3
4
5
6
canvas{
    margin:0 auto;
    display:block;
    border:2px solid red;
}
//canvas是一个行内元素

画直线

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style>
        canvas{
            border: 1px solid red;
            display: block;
            margin: 0 auto;
        }
    </style>
</head>
<body>
    <canvas width="500px" height="500px" id="canvas"></canvas>
    <!--
        1. 获取画布
        2. 获取画布的上下文
        3. 开始一条路径
        4. 确定起始点
        5. 确定结束点
        6. 着色
        7. 结束路径
        8.  -->
    <script>
        //获取canvas标签
        let canvas = document.getElementById('canvas');
        //获取上下文对象
        let c = canvas.getContext('2d');
        //开启一条路径
        c.beginPath();
        //确定起始点
        c.moveTo(100,100);
        //到哪去，确定结束点
        c.lineTo(200,200);
        //在上色之前设置颜色和线宽
        c.strokeStyle = 'blue';
        c.lineWidth = 10
        //进行上色
        c.stroke();
        //关闭路径
        c.closePath();
    </script>
</body>
</html>

封装画彩线

canvas中有许多相同的操作，我们可以将其封装传入起点、终点、颜色、线宽起到减少代码的作用

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style>
        canvas{
            border: 1px solid red;
            display: block;
            margin: 0 auto;
        }
    </style>
</head>
<body>
    <canvas width="500px" height="500px" id="canvas"></canvas>
    <script>
        //获取canvas标签
        let canvas = document.getElementById('canvas');
        //获取上下文对象
        let c = canvas.getContext('2d');
        drawLine(100,100,400,100,'red',10);
        drawLine(400,100,400,400,'blue',10);
        drawLine(400,400,100,400,'green',10);
        drawLine(100,400,100,100,'orange',10);

        /**
         * @description:
         * @param {*} x1
         * @param {*} x2
         * @param {*} y1
         * @param {*} y2
         * @param {*} color
         * @param {*} width
         * @return {*}
         */
        function drawLine(x1,x2,y1,y2,color,width){
            c.beginPath();
            c.moveTo(x1,y1);
            c.lineTo(x2,y2);
            c.strokeStyle = color;
            c.lineWidth = width;
            c.stroke();
            c.closePath();
        }
    </script>
</body>
</html>

封装使用

也可以选择持续lineTo来画线，对于虚线，也是同样的思路,可以看成是许多段实线一起组成

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
<!--
 * @Author: CQJ
 * @Date: 2022-04-04 16:00:57
 * @LastEditTime: 2022-04-04 19:39:42
 * @LastEditors: CQJ
 * @Description:
 * @FilePath: \test\show.html
 * 练习用
-->
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style>
        canvas{
            border: 1px solid red;
            display: block;
            margin: 0 auto;
        }
    </style>
</head>
<body>
    <canvas width="500px" height="500px" id="canvas"></canvas>
    <script>
        //获取canvas标签
        let canvas = document.getElementById('canvas');
        //获取上下文对象
        let c = canvas.getContext('2d');
        for(let i=0;i<30;i++){
            drawLine(100+10*i,105+10*i,100,100,'red',5);
            // drawLine(110,100,115,100,'red',10)
            drawLine(400,400,100+10*i,105+10*i,'blue',5);
            drawLine(100+10*i,105+10*i,100+10*i,105+10*i,'orange',5);
        }
        /**
         * @description:
         * @param {*} x1
         * @param {*} x2
         * @param {*} y1
         * @param {*} y2
         * @param {*} color
         * @param {*} width
         * @return {*}
         */
        function drawLine(x1,x2,y1,y2,color,width){
            c.beginPath();
            c.moveTo(x1,y1);
            c.lineTo(x2,y2);
            c.strokeStyle = color;
            c.lineWidth = width;
            c.stroke();
            c.closePath();
        }
    </script>
</body>
</html>

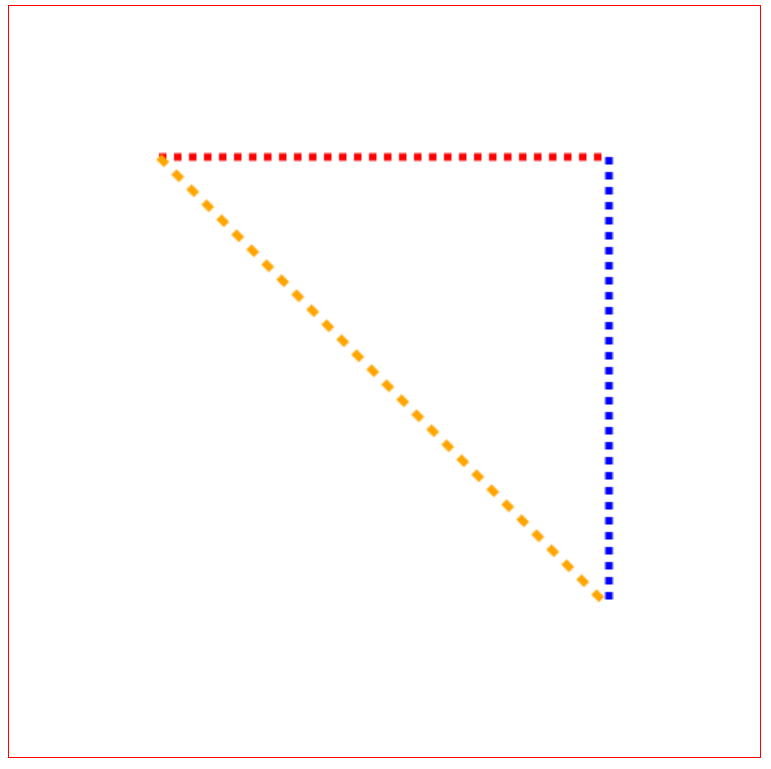

虚线

画矩形

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style>
        canvas{
            border: 1px solid red;
            display: block;
            margin: 0 auto;
        }
    </style>
</head>
<body>
    <canvas width="500px" height="500px" id="canvas"></canvas>
    <script>
        //获取canvas标签
        let canvas = document.getElementById('canvas');
        //获取上下文对象
        let c = canvas.getContext('2d');
        //建立坐标系
        drawLine(100,100,100,400,'red',2);
        drawLine(100,400,400,400,'red',2);
        /**
         * @description:
         * @param {*} Xstart X轴上的起点位置
         * @param {*} Ystart Y轴上的起点位置 从上往下排
         * @param {*} width  柱状图的宽度
         * @param {*} height 柱状图的高度
         * @return {*}
         */
        // c.fillRect = function(Xstart,Ystart,width,height){

        // }


        for(let i=0;i<7;i++){
            //随机生成一个高度
            let height = Math.random()*280+10 //[10,290)
            //随机生成一个颜色
            let color = '#'+parseInt((0xfff)*Math.random());
            c.fillStyle = color;
            c.fillRect(120+40*i,400-height,20,height);
        }
        /**
         * @description:
         * @param {*} x1
         * @param {*} x2
         * @param {*} y1
         * @param {*} y2
         * @param {*} color
         * @param {*} width
         * @return {*}
         */
        function drawLine(x1,x2,y1,y2,color,width){
            c.beginPath();
            c.moveTo(x1,y1);
            c.lineTo(x2,y2);
            c.strokeStyle = color;
            c.lineWidth = width;
            c.stroke();
            c.closePath();
        }
    </script>
</body>
</html>

柱状统计图

清空给定矩形内的指定像素

1
2
3
4
5
6
7
8
/*
	x:要清除矩阵左上角的x坐标
	y:要清除矩阵左上角的y坐标
	width:要清除矩阵的宽度，以像素计
	height:要清除矩阵的高度，以像素计
*/
context.clearRect(x,y,width,height);

画⚪

1
2
3
4
5
6
7
8
9
10
11
 /**
         * @description:
         * @param {*} x 圆心的横坐标
         * @param {*} y 圆心的纵坐标
         * @param {*} r ⚪的半径
         * @param {*} sAngle    开始的角度
         * @param {*} eAngle    结束的角度
         * @param {*} counterclockwise  顺时针或逆时针，false为顺时针，true为逆时针
         * @return {*}
         */
context.arc(x,y,r,sAngle,eAngle,counterclockwise);
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style>
        canvas{
            border: 1px solid red;
            display: block;
            margin: 0 auto;
        }
    </style>
</head>
<body>
    <canvas width="500px" height="500px" id="canvas"></canvas>
    <script>
        //获取canvas标签
        let canvas = document.getElementById('canvas');
        //获取上下文对象
        let c = canvas.getContext('2d');
        c.beginPath();
        c.arc(100,75,50,0,0.1*Math.PI,true);
        c.stroke();

    </script>
</body>
</html>

画⚪

需要注意：这里是18°，但是要求从0到18°，逆时针的指向，所以会画大半个⚪

HTML
#canvas
